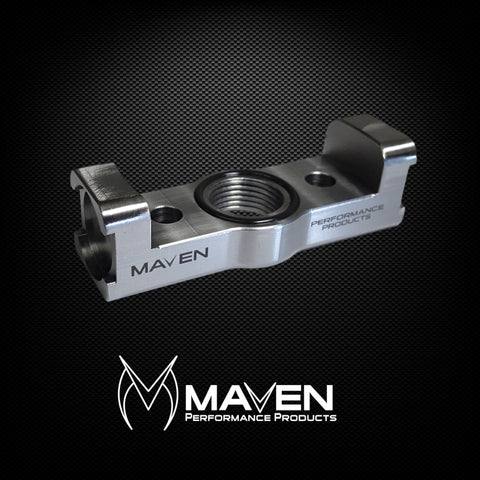

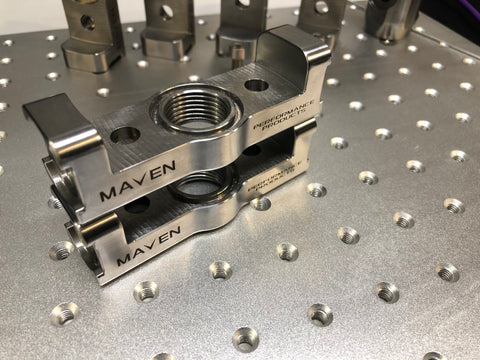

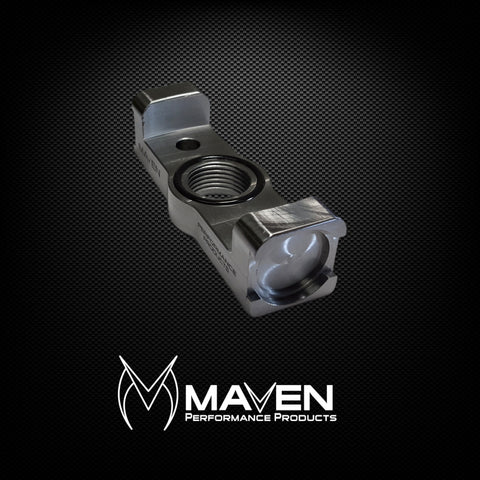

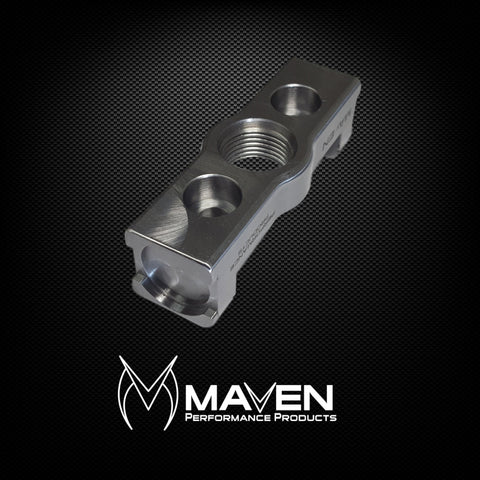

SMALL FRAME TURBO MOUNT 2.0 Drain Bolt Spacing Part No-175-815
FEATURES:
DESIGNED & MACHINED IN THE USA
BILLET STEEL – 1018 CRS
2 DIFFERENT TUBE DIAMETER POCKETS- 7/8″ & 1″
CENTER MOUNTING ON BEARING HOUSING
-10 ORB/AN DRAIN (GT35 VARIATION= -8 ORB/AN)
O-RING SEAL TO DRAIN SURFACE- NO GASKET REQUIRED (STANDARD GASKET ON GT35 /1.5" VERSION)
BEARING HOUSING CAN PIVOT 360 DEGREES WITHOUT INTERFERENCE
WEIGHS JUST 9.5 oz
MEASURES 3.75″L 1.35W 1.125H
